Make Room for Tomorrow.
Migrate inactive data to cost effective archive storage.
P5 Archive is a long-term storage solution that moves data to disk, tape & the cloud
P5 can be set up within minutes, and works cross platform on Mac, Linux, Windows, FreeBSD, Synology, QNAP and NETGEAR. You can restore data on any platform since P5 stores it in a platform-neutral format.
- Browser interface
- Thumbnails and proxy clips
- Customisable metadata fields and menus
- Combined search, storable
- Storage agnostic: Disk, Tape and Cloud as target storage
- Mac, Win, Linux, QNAP, Synology, NetGear, FreeNAS/TrueNAS
- Drag-and-Drop Archiving and Restore as option
- Policy-based moving and copying of archived data with P5 Data Mover
- LTFS as archive format, import and export (ISO/IEC 20919:2016)
- Scales to PB and billions of files
Media Archiving Software

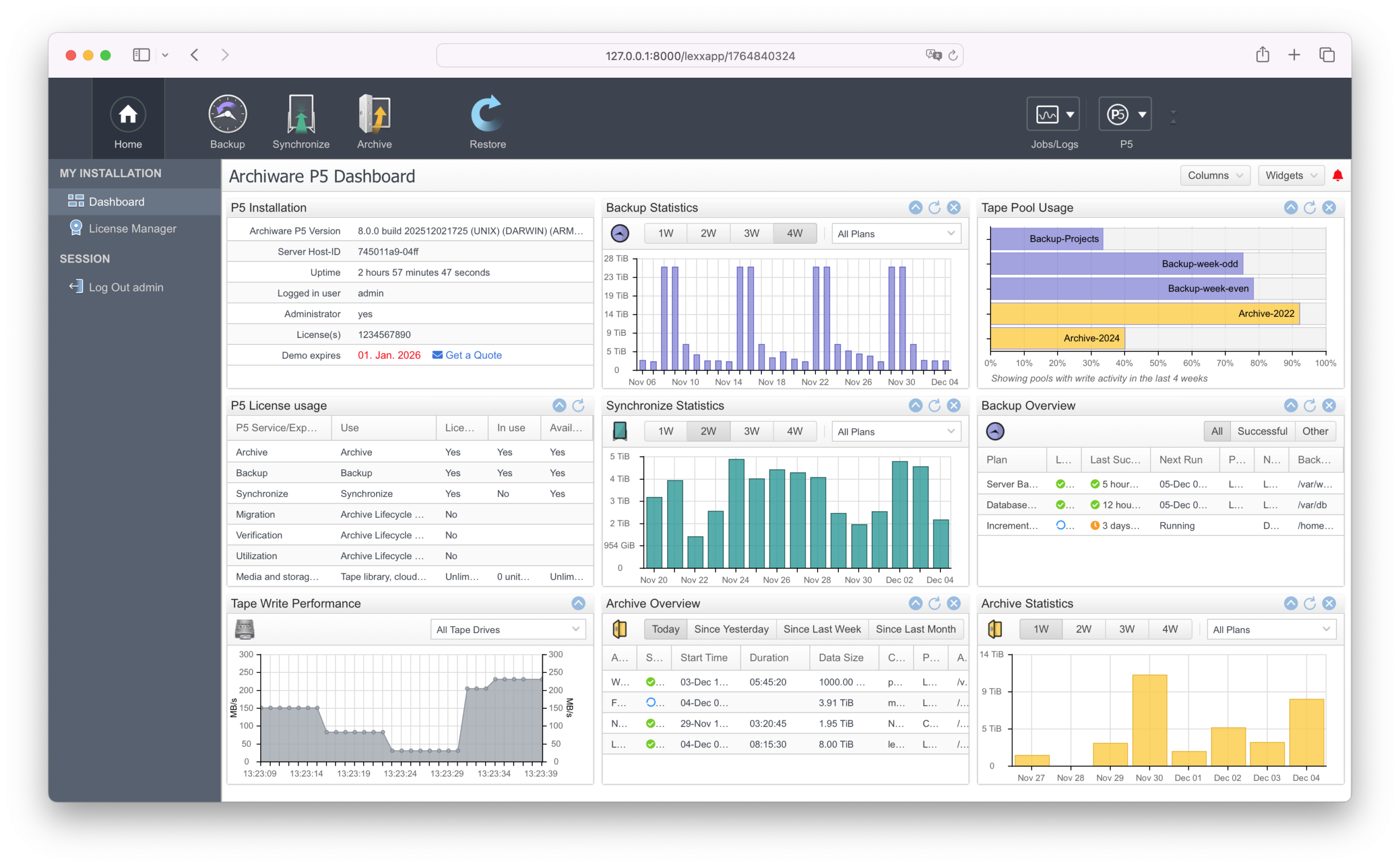

The software’s browser-based interface enables fast and easy configuration, administration and monitoring – regardless of your location.

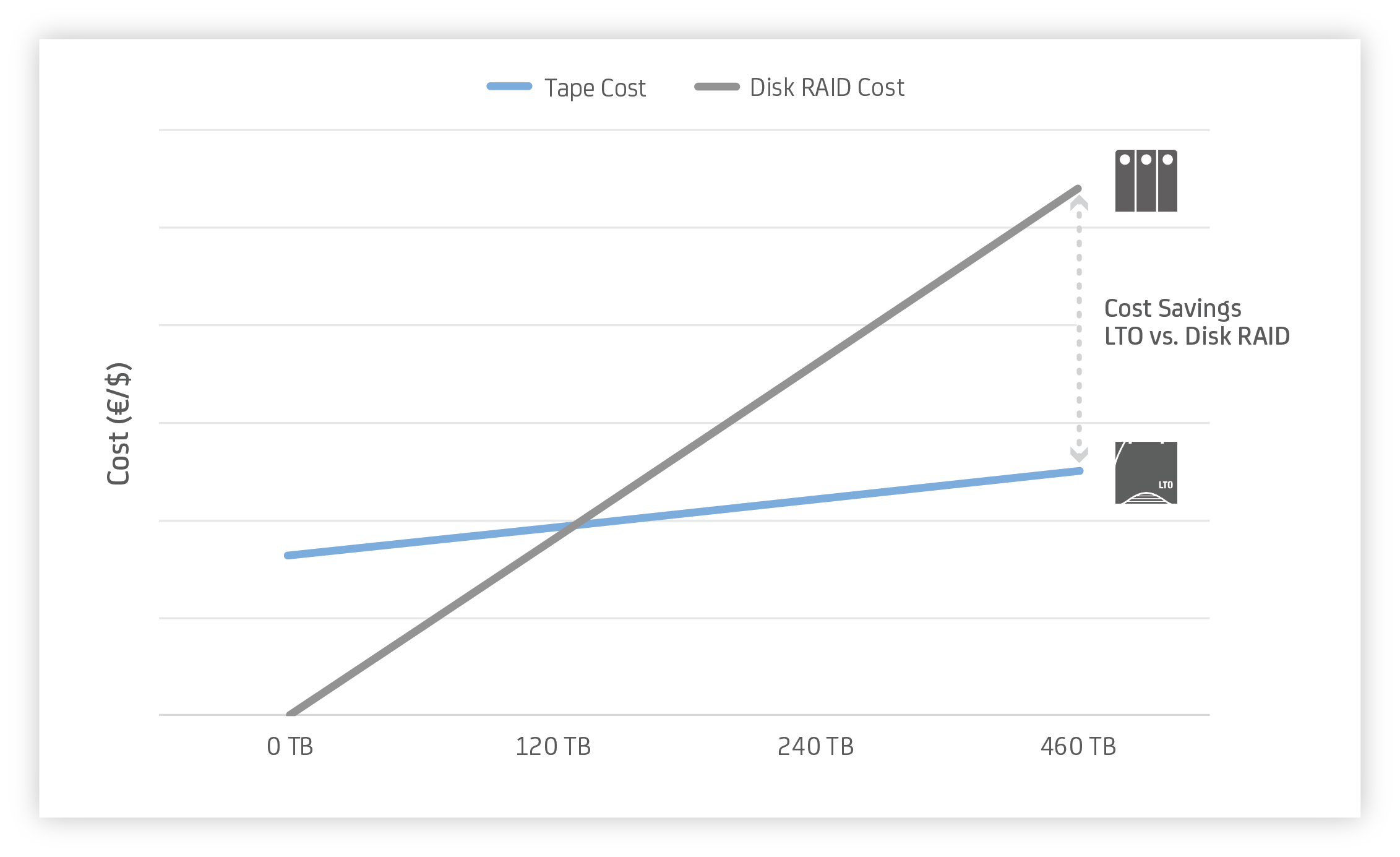

P5 Archive helps to move data to cost-effective LTO tape media. Single LTO drives, as well as LTO libraries of virtually all vendors are supported. In the process, expensive server storage can be reclaimed, while backup volume and runtime are reduced. By relieving your network of traffic, you’ll get a better working experience and increased productivity.
Archiving is possible to Generic S3, Amazon S3, Amazon Glacier, Backblaze B2, Google Cloud, Hitachi S3, Microsoft Azure, Oracle Cloud, RSTOR Space, Seagate Live Cloud, Wasabi S3 and others.
Access to Wasabi storage is built-in to P5. Manual configuration of the Wasabi end-point DNS names is not required. Archiving to the cloud saves hardware and administration cost, plus the available storage can be easily extended when the need arises.
As users requirements grow and change, P5’s modular design allows for optimal scaling to fit your specific needs. There are no limits to possible growth: you can easily add further Archiware products, hardware or media to expand your setup. P5 Archive can save data to disk, LTO tape and the cloud, while the same hardware can simultaneously be used by P5 Backup.
P5 Archive lets you move or migrate data offline to disk, tape and the cloud. You can monitor files, folders and the directory structure to archive files automatically. Fine-grained filtering can be applied to select or exclude files based on name, size, date etc. Data can be cloned to a second tape for offsite storage. Encryption options protect data against non-authorized access both during the transfer and on the media itself.
Free Choice of Storage
Which storage fits best depends on your requirements, budget and strategy. Each of the available storage categories - disk, tape and cloud - have their own specific characteristics and strengths. P5 Archive can use disk, tape and cloud storage to offer maximum flexibility.
Import of Foreign LTFS Volumes
This feature brings huge benefits for users with data stored on LTFS tapes. Manage LTFS tapes by importing them into P5 Archive, they will appear in the index of your choice, with full search across all volumes.
Supports LTFS tapes written by P5 or 3rd party LTFS software. P5 will scan LTFS tape volumes, and add contents to the P5 archive index, data can then be restored across multiple tapes via the archive index. Supports tape libraries for import across multiple slots.
Very Fast Verification of Written Data
By using xxHash 64 and 128-bit algorithms, P5 speeds up the verification using checksums by 3x.
Easy Asset Management
P5’s archiving software can function as an easy to use asset management system, e.g. to manage video archives. Features include media previews and proxy clips, customisable metadata fields and menus. Visual browsing as well as combined searching helps to find and restore specific files even years after they were created. An automatic backup of the Archive index provides maximum security for the operation of the archive. When switching between search results in the archive index and browsing, previously executed search is retained, easing location of the data you're looking for. Previous 10 searches are available from drop-down menu.
P5 Archive allows data to be archived in incremental mode. This way, only new and changed files will be archived, effectively minimizing the growth of the Archive.
3rd Party Integrations
P5’s scriptable command line interface and REST-based API offer unlimited options for 3rd party integrations. The following options are already available: axle, CatDV, CANTEMO Portal™, Canto Cumulus, DALIM ES, EditShare Flow, empress eMAM, FocalPoint Server, Helios, Kyno, medialoopster, Primestream FORK, Strawberry by Projective, Metus, and Xinet.

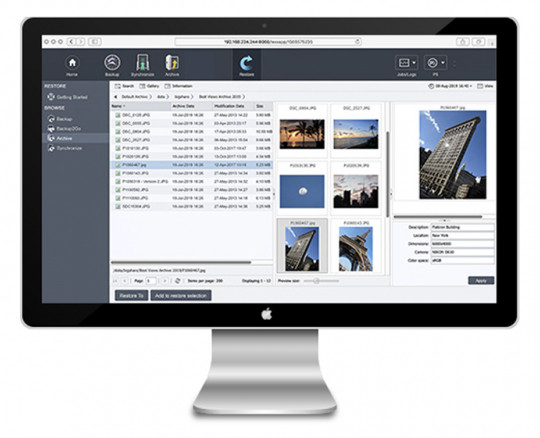

Locate saved searches using P5 Archive's mini-MAM archive.
Archiving in P5 Volume and LTFS Volume Format
Archiware's cross-platform LTFS driver that brings features and convenience not seen before with LTFS software products. This new approach removes the need for the open-source 'FUSE' software used by competitive products, allowing direct control of the tape media, while maintaining full ISO/IEC compatibility.
LTFS formatted LTO tapes are now supported by the P5 Archive module. Users wishing to archive data to tape, with full indexing, searching, thumbnail generation and meta-data ingest, can now choose between two different tape formats:
P5 volume format
- Supported for 20 years across thousands of P5 installations, compatibility across all P5 supported platforms, support for block-level cloning, parallel writing across multiple tape drives, data-compression/encryption and free from character set limitations for file/folder names.
LTFS volume format
- Open standard (ISO/IEC 20919:2016) and manufacturer-independent tape format, compatible across all P5 supported platforms (macOS, Windows, Linux, FreeBSD) and also with other LTFS software tools for software-independent restore of data.

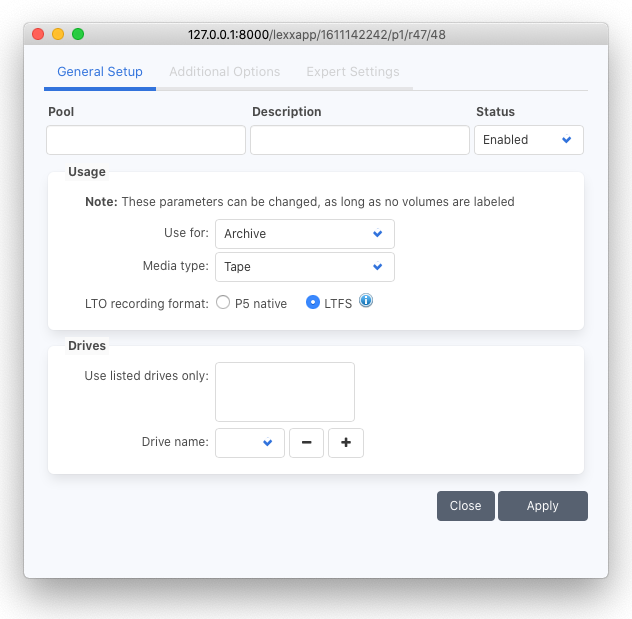

Both formats support spanning of large files across tapes. When a storage pool is created for archiving, there is now an option to choose between the 'P5 Native' and LTFS formats. Volumes can be formatted as LTFS by labelling, in single drives or libraries.
Existing native pools and LTO volumes will continue to work in combination with LTFS volumes. P5 Volume format continues to be the recommended option for P5 Archive. LTFS is a useful option where interoperability with non-Archiware systems is required.
Archive Using Pool or Object Format
P5 Archive can migrate and archive data offsite using two options: the Pool or Object Format. The Pool Format includes all the familiar, powerful features of P5 (cloning, migration, etc.). This standard procedure assigns archived data to a Pool consisting of a flexible number of Volumes. The organization and bundling of data into Pools and Volumes creates manageable entities. In the Pool Format, data is exclusively restored through P5. Supported storage formats include tape, disk and the cloud. Native Microsoft Azure cloud storage support, along with Hitachi and Wasabi support, via the Generic S3 option are available when using the Pool format for cloud storage.
The Object Format allows single-file access and share-ability for cooperative workflows. In this format, archived data are stored as individual objects (Files). This mode provides applications and users the option of directly accessing and restoring data archived to the cloud without P5. To enable direct data access, P5 stores data in its original format in the cloud. The link-addresses required for external access are logged by P5. This storage format is only supported in the cloud (Amazon S3, Backblaze, generic S3).
Cloud Import/Export Services
Backblaze, Amazon and Microsoft all offer an upload service, whereby a physical storage appliance can be shipped to a location where data can be transferred locally using NAS/DAS protocols to the appliance and then into a cloud container when the disk is returned to the cloud vendor. This allows for larger dataset to be migrated to cloud storage without potentially slow transfers using public WAN connections.
P5 Archive allows such services to be used to bootstrap a cloud archive. The initial data requiring archive can be moved to the cloud using one of these storage appliances coupled with the service offered by the cloud vendor.
When seeding archive data using an AWS Snowball, B2 Fireball or similar, P5 provides a checkbox to suppress writing of data to the cloud object store directly.
The Linear Tape File System (LTFS) allows files to be stored on LTO tape and be accessed in a similar fashion to those on disk or removable flash drives. Since LTFS-formatted tapes can be used between different drives/software, they are a useful format for transfer of data between systems and locations.
P5 Archive supports labelling tapes as LTFS, writing files from local and client filesystems and reading from a tape and writing back to a filesystem. The 'LTFS Exchange' section of the UI, within the P5 Archive configuration, provides all of the LTFS configuration and operation options in one convenient place.
A formatted and mounted LTFS tape can additionally be selected when restoring data previously archived or backed up using P5 Archive and P5 Backup.
Simple formatting, reading and writing of LTFS volumes for import/export is available on all supported P5 platforms, including MS Windows and FreeBSD.
P5 Archive lets you easily archive your valuable video and production assets. Quickly locate your data in the archive by searching with keywords and previews. Increase your ability to repurpose your media and allow high availability of your footage. The reduced workload of both your servers and your staff increases productivity and efficiency and simplifies workflows. The software secures data on disk or tape and is available for Mac, Windows, Linux, Synology, QNAP and NETGEAR.

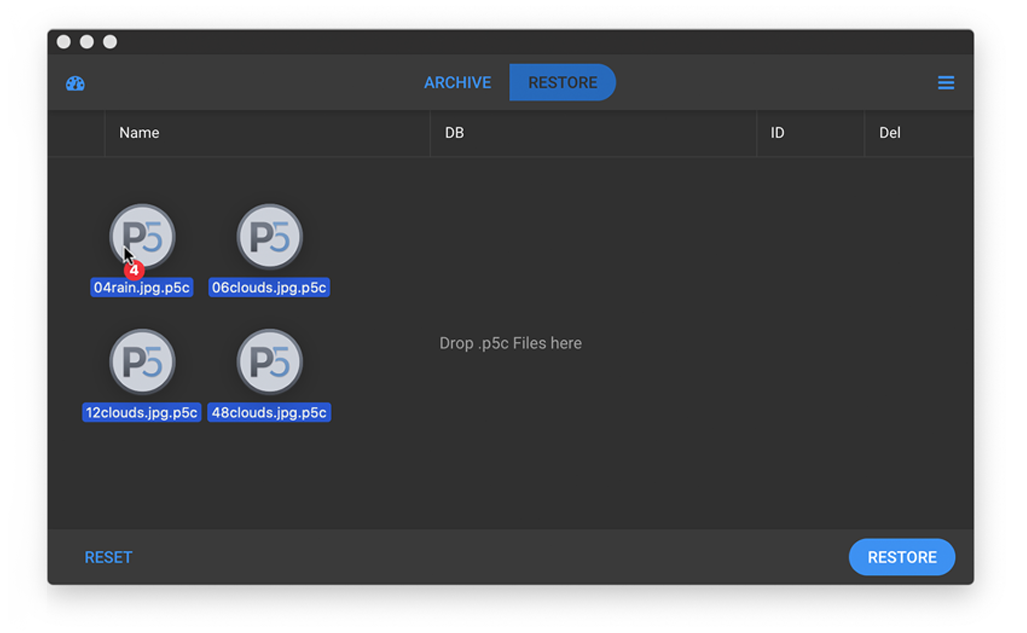

P5 Companion App
P5 Companion is a desktop application for Windows, macOS and Linux that allows files from local or shared storage to be archived and restored by simple drag-and-drop operations. Data is archived and restored via communication with a P5 Server running the P5 Archive software. P5 Archive is able to archive files to either disk storage, LTO tape or to one of a variety of cloud storage platforms.

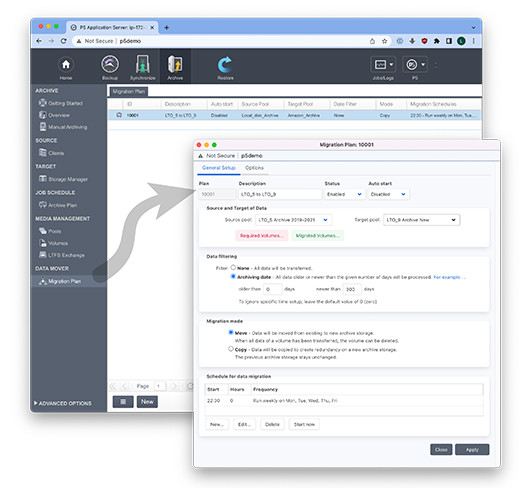

P5 Data Mover
The P5 Data Mover is an extension for the P5 Archive module. It offers policy-based moving and copying of archived data between tape, cloud and disk storage. This HSM-like extension offers flexibility for any storage strategy. Data can easily be migrated or copied between storage tiers. This way, users can automatically move data from hot storage to cold storage and in any direction they need.

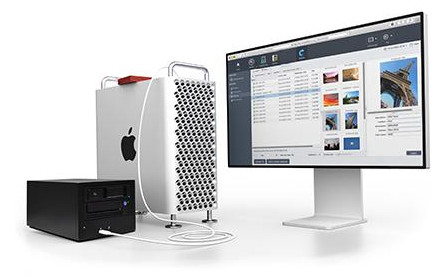

P5 Desktop LTO Edition
Archiware P5 is available in a special P5 Desktop LTO Edition for use with single LTO drives. Automatic Backups and long-term Archive on LTO, store production data and protect for the long-term. Now both are available in this special license bundle.
Profit from proven longevity and affordability of LTO media. Extremely easy archiving and backup with P5.

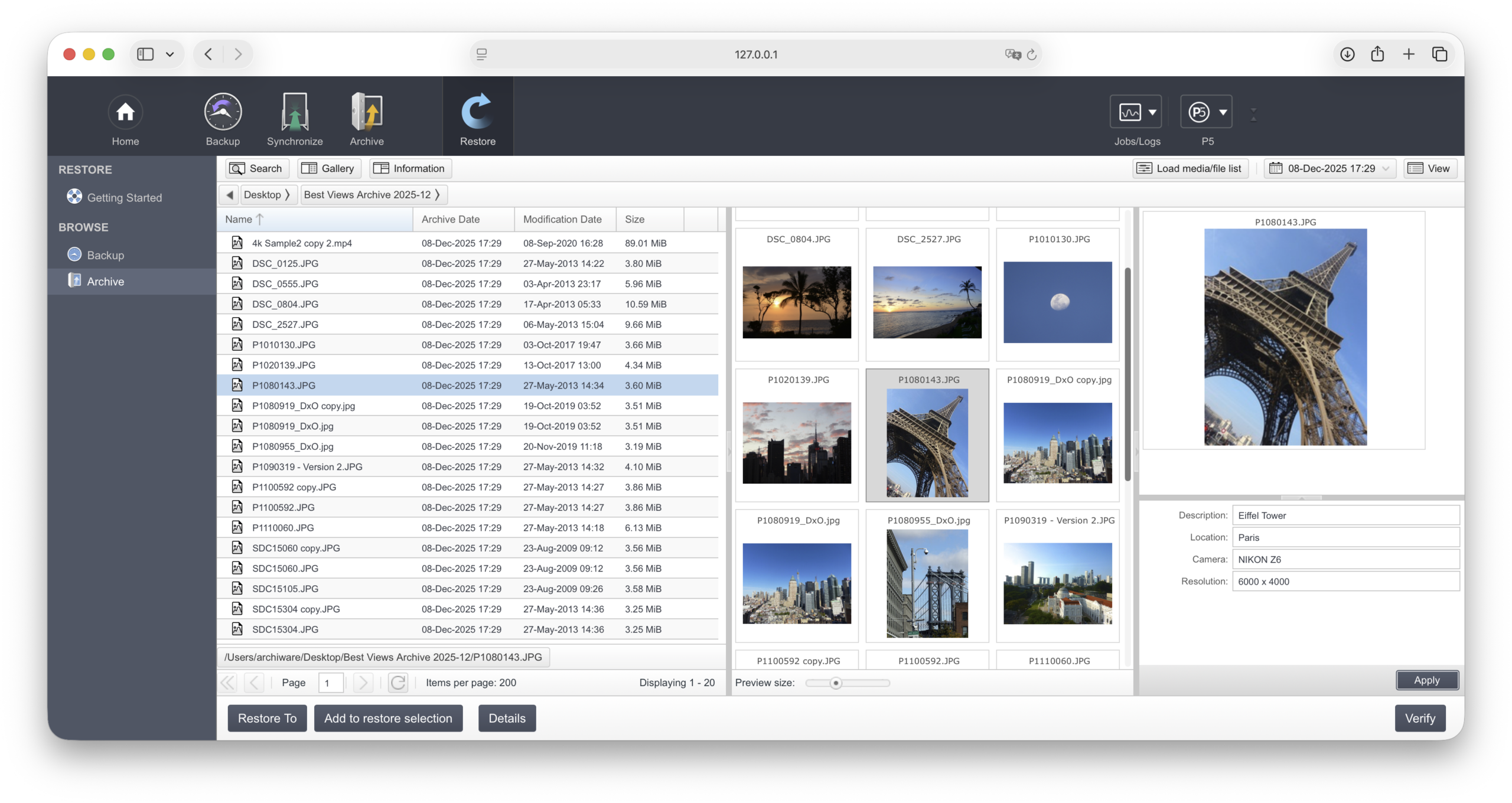

P5 Archive as MAM
With file numbers growing dramatically, finding the right asset can be a challenge. An efficient system for referencing and re-use of files becomes essential. P5 Archive’s integrated mini-MAM system provides a simple solution to find and restore archived media quickly and efficiently.
Comparison of LTO and Cloud Storage Costs
Archiware P5 Archive software allows archive workflows for both LTO and Cloud, or a combination of both. The software can also migrate selectively between one type of storage and another, while keeping everything visible and managed within a web-admin interface.
In this article, costs and convenience of storing archive data on LTO tapes versus cloud storage from various popular vendors are compared. Suggestions are provided on the best solution for various amounts of data.
Archiware products are sold according to a list-based pricing structure. Pricing depends on the required modules, size of storage and other factors. The required license or bundle can easily be calculated using our P5 Product Configurator.
Simply select the required modules, the size of Archive/Backup storage or Tape library, additional clients or options to receive a license configuration quote.
Clone Tapes to keep one copy offsite. Parallelize to achieve maximum throughput.
Move or migrate data offline to disk, tape and the cloud.
- Migrate server data
- To disk, tape or cloud*
- Easy user restore
- Previews and Metadata
- Drive parallelization
- Tape cloning
- Offsite storage
- Data Migration
- Full or incremental
- Preview creation
- User-definable Metadata
- File Filter/policies
- Data restore between platforms
OS SERVER & CLIENT
- NETGEAR ReadyNAS
